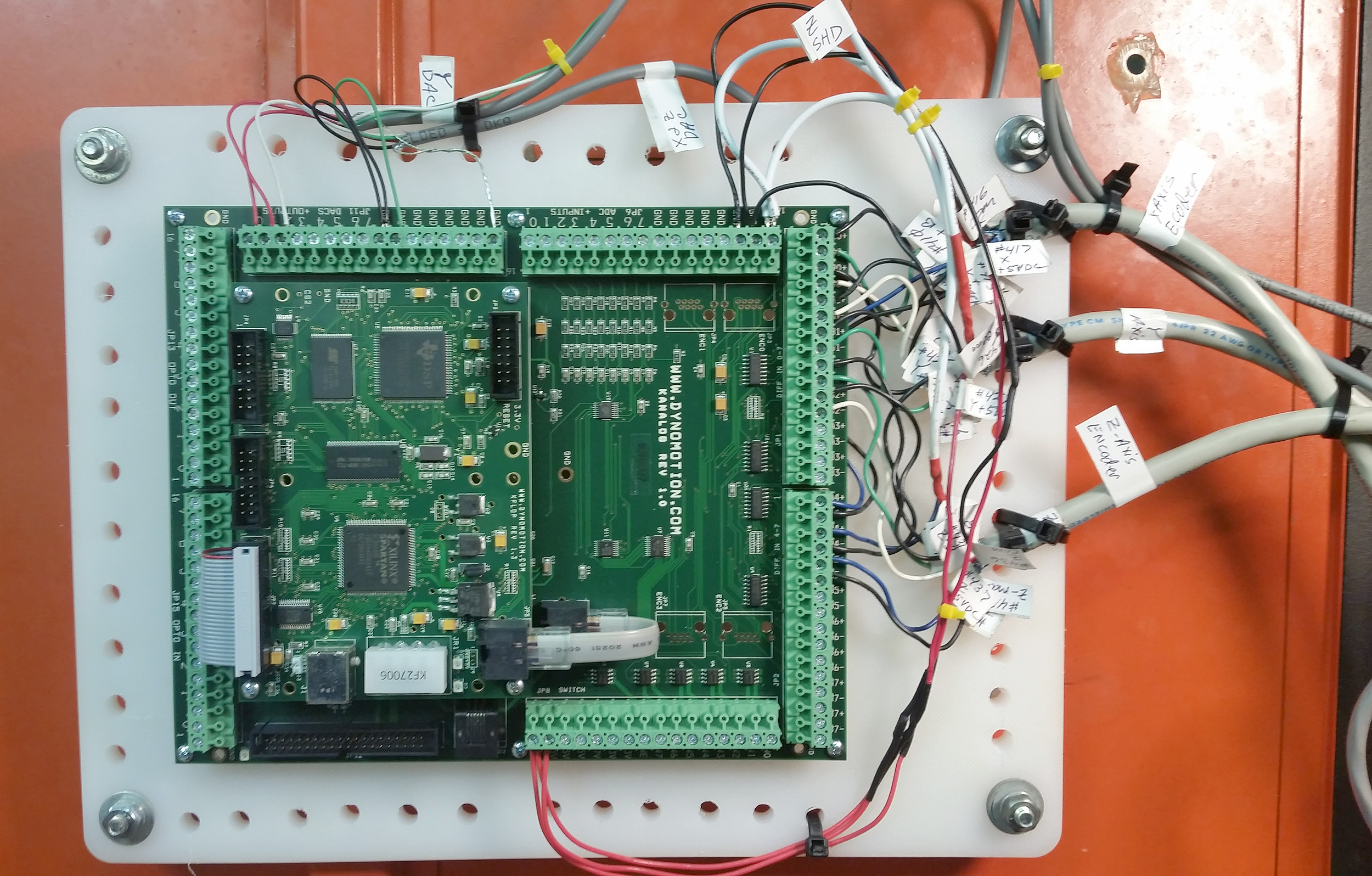

001 |
KFLOP/Kanalog mounted and Re-Wired on J325 Door with X, Y, & Z Encoder and DAC wires connected. Click on Image for Larger Image.
| | ![Click on Image for Larger Image Kanalog Mounted on J325 Door](Images/048_SM.jpg) |

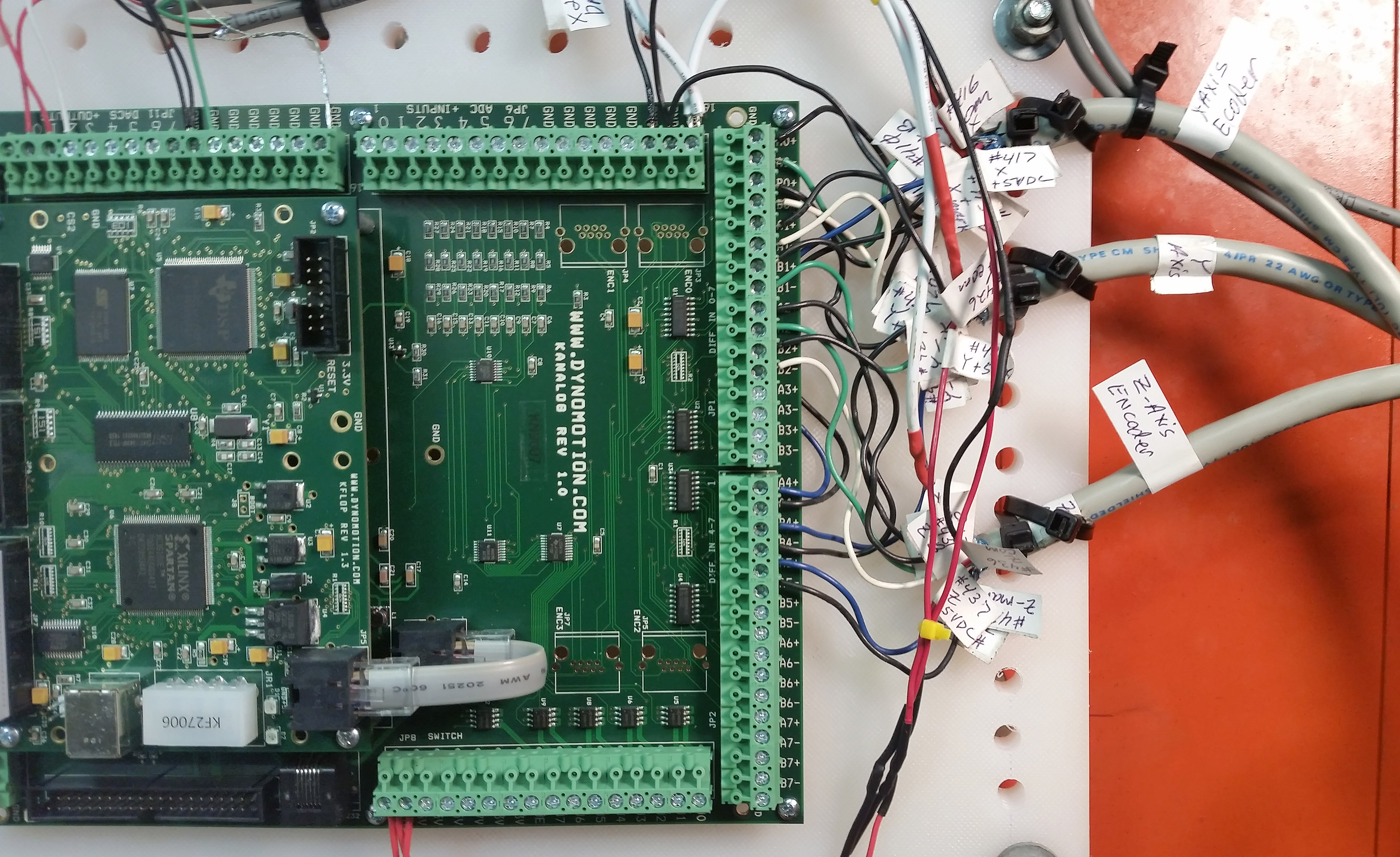

002 | Kanalog with Ecoder wires connected. Click on image for larger image. | | ![Click for Larger Image Kanalog Encoder Wires Connected](Images/049_SM.jpg) |

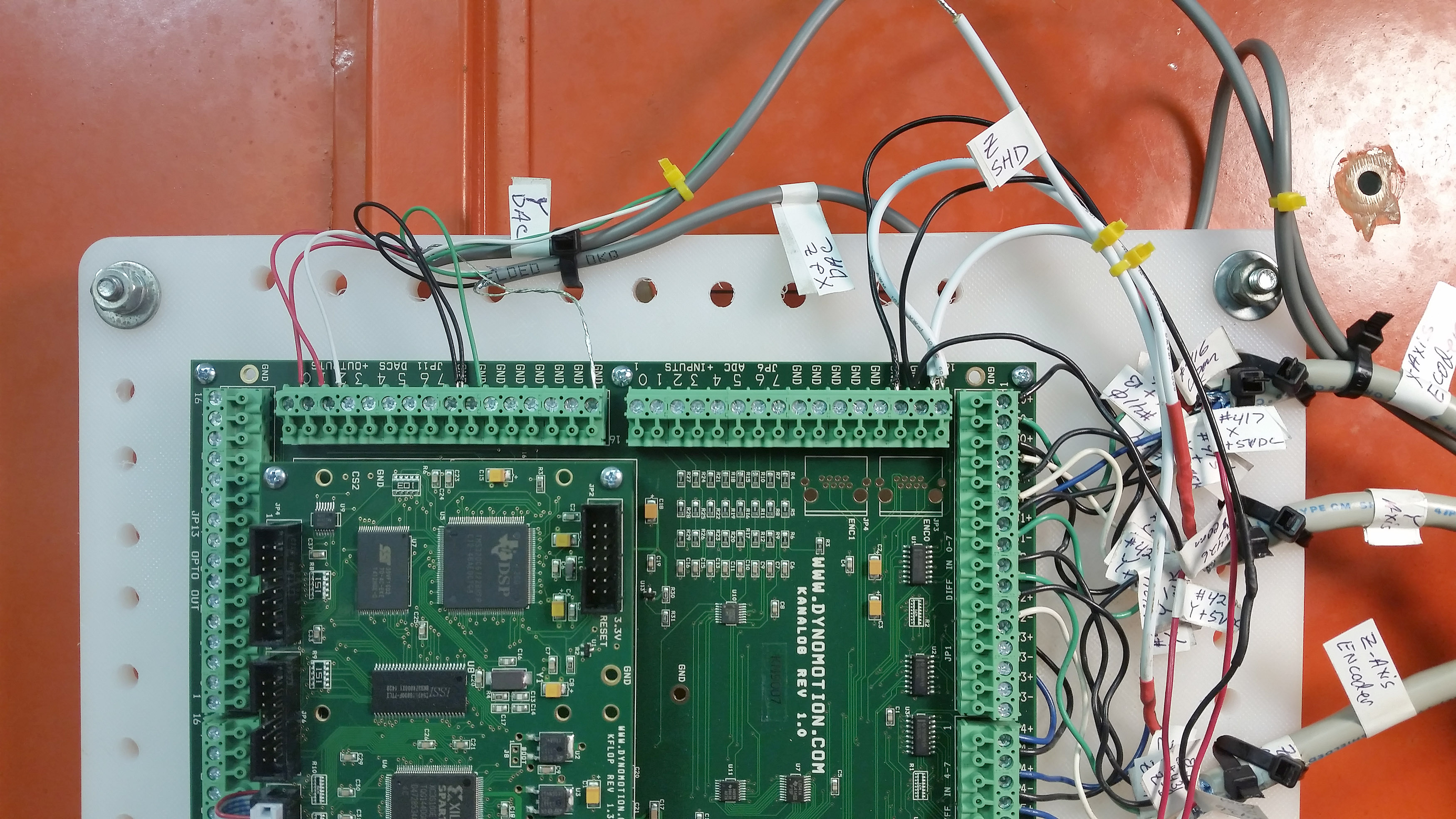

003 | Kanalog with DAC wires connected. Click on image for larger image.
| | ![Click on Image for Larger Image KFLOP/Kanalog Wired with DAC](Images/051_SM.jpg) |

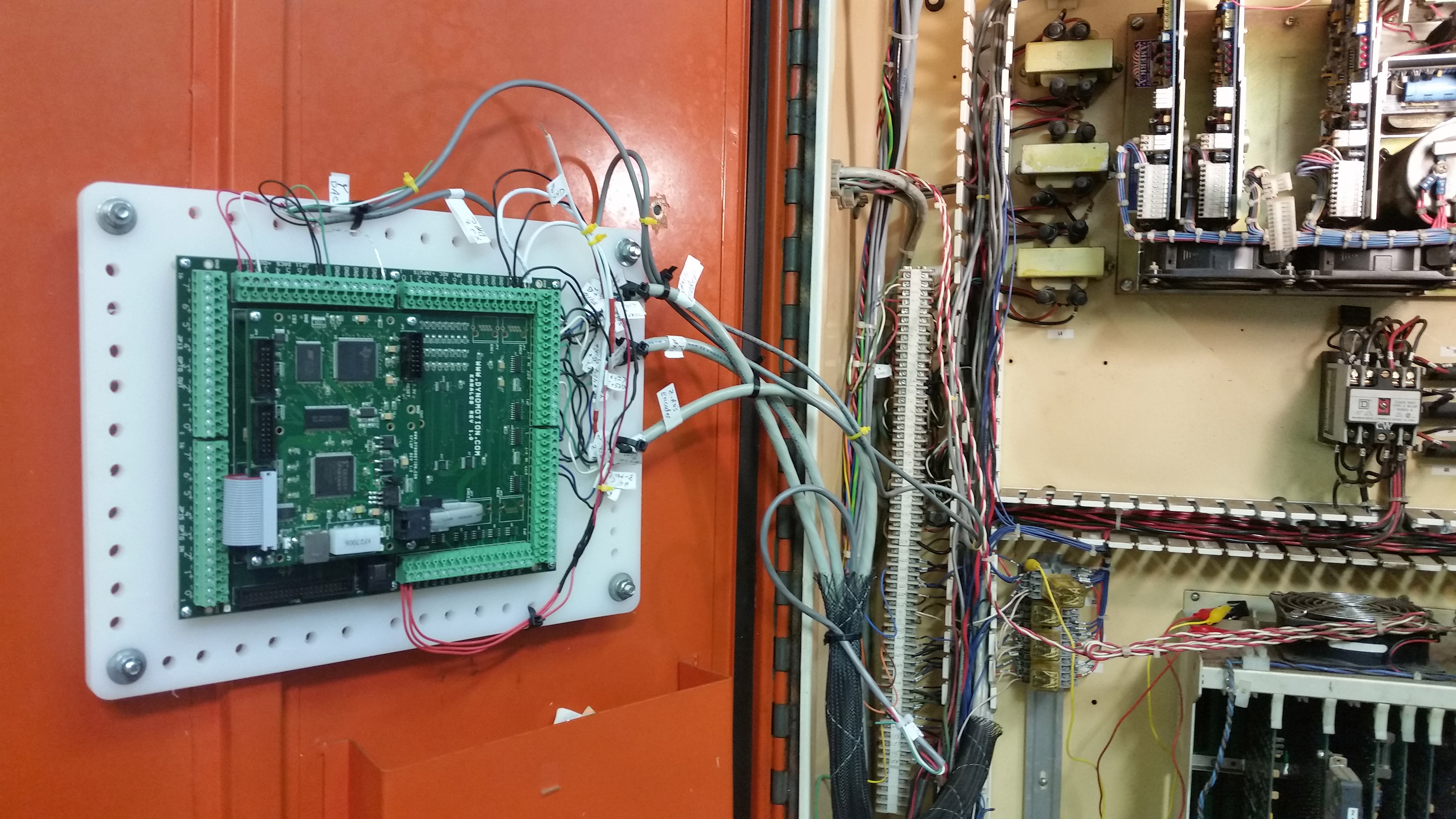

004
| KFLOP/Kanalog mounted on the Door of the J325 cabinet. Click on Image for Larger Image. | | ![Click on Image for Larger Image Kflop/Kanalog on Mounted on Door](Images/050_SM.jpg)
|

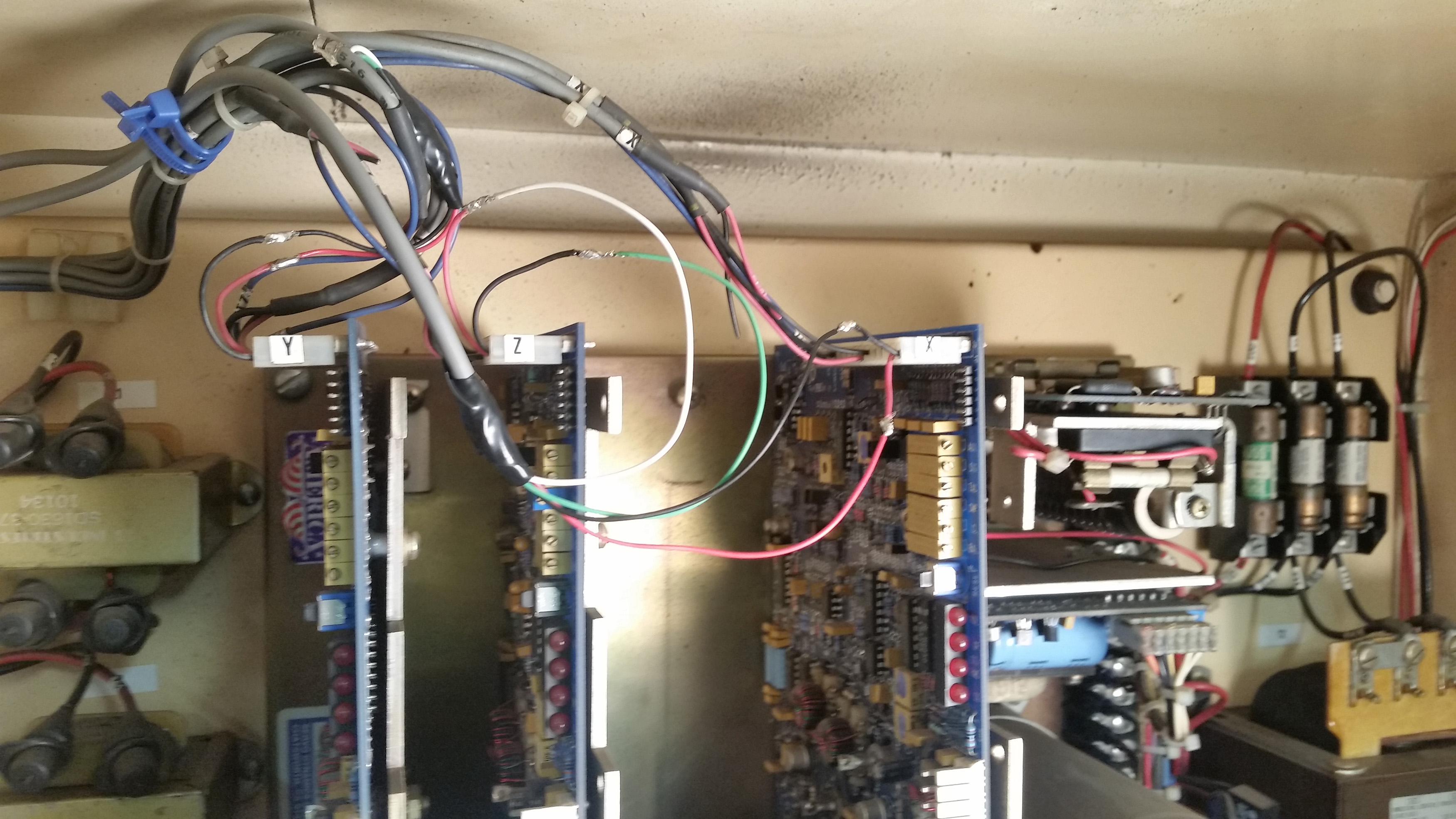

005 | X, Y, & Z axis DAC wires connect to the drive board. Click on Image for Larger Image. | | ![Click on Image for Larger Image X, Y, & Z axis DAC wires connect to Drive Board](Images/052_SM.jpg) |

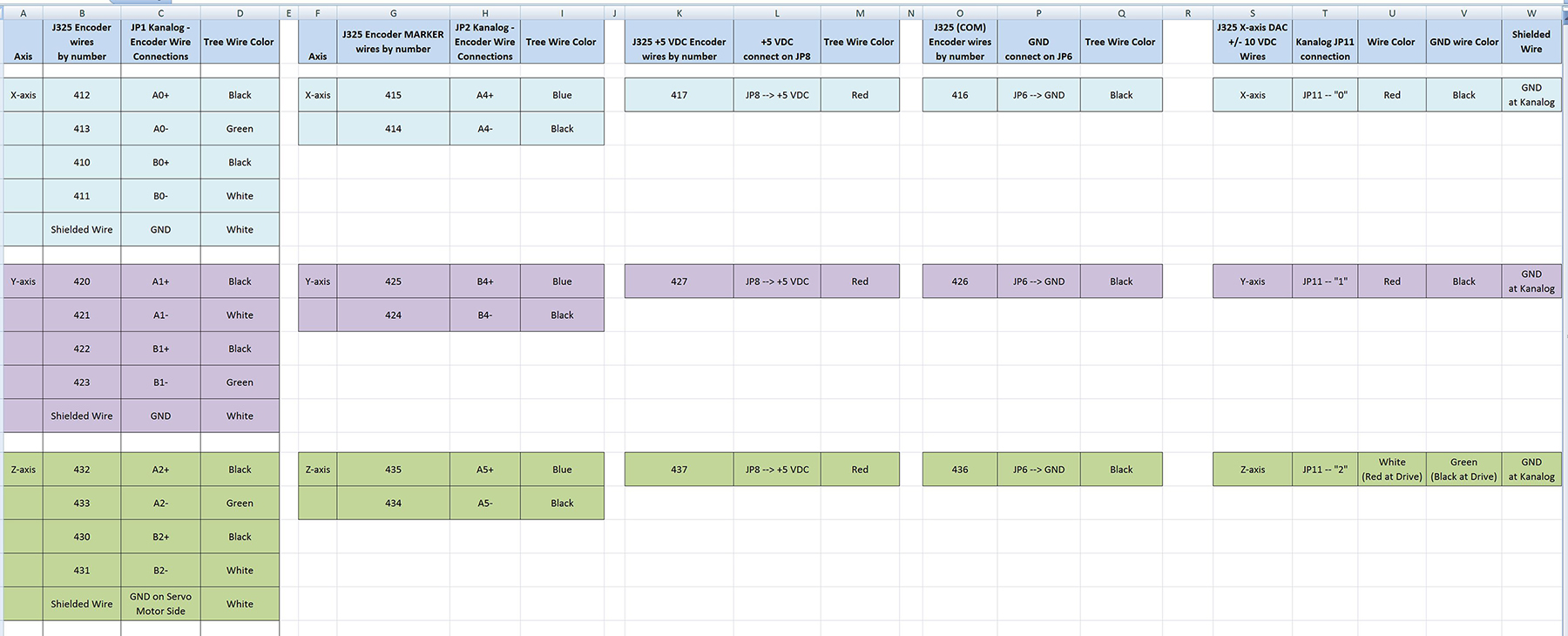

006 | KANALOG wiring connection Spreadsheet. Click on image for Excel Spreadsheet. | | ![Click on Image for Excel Spreadsheet Kanalog wiring connection Spreadsheet](Images/053_SM_Wiring_Spreadsheet.JPG) |
