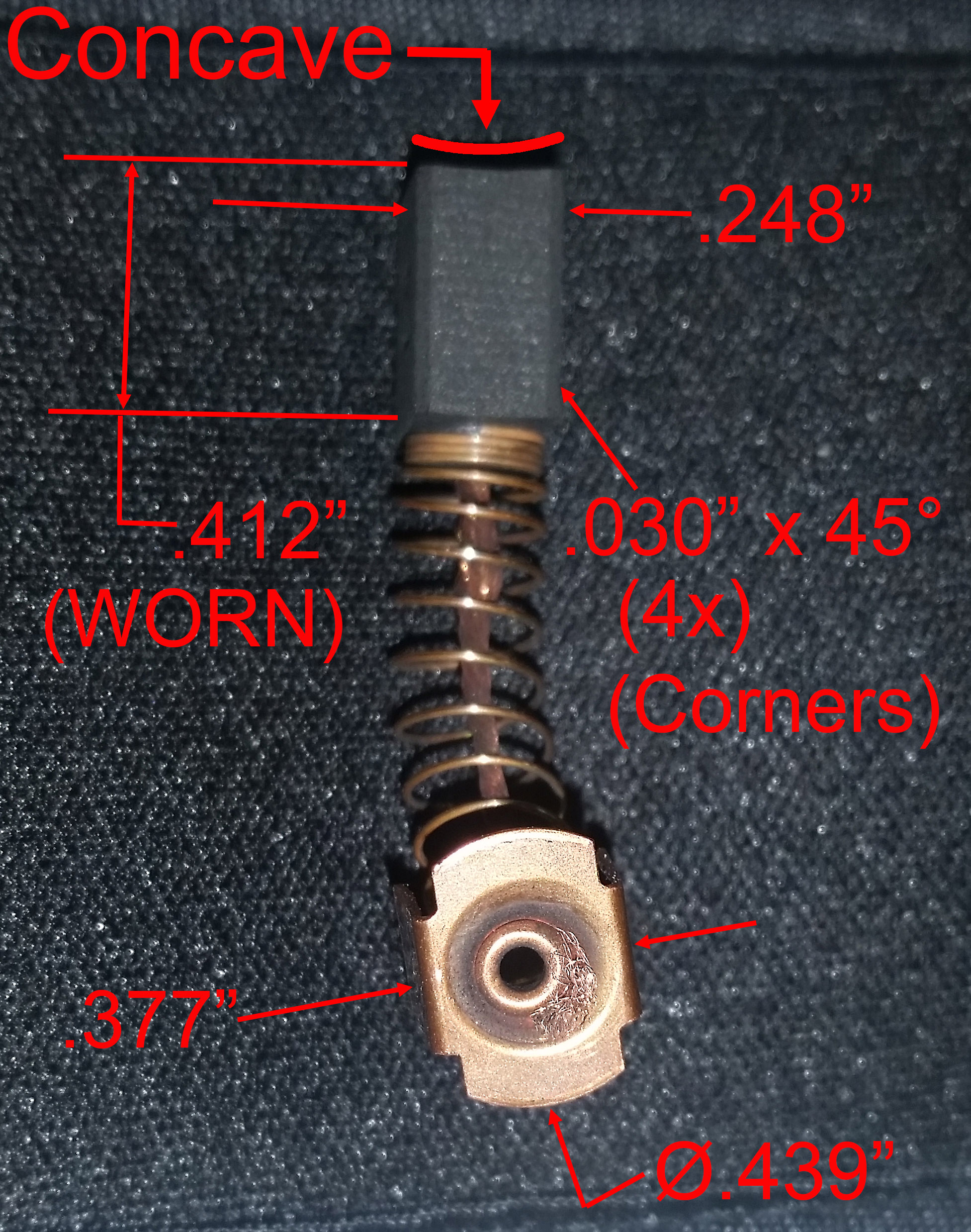

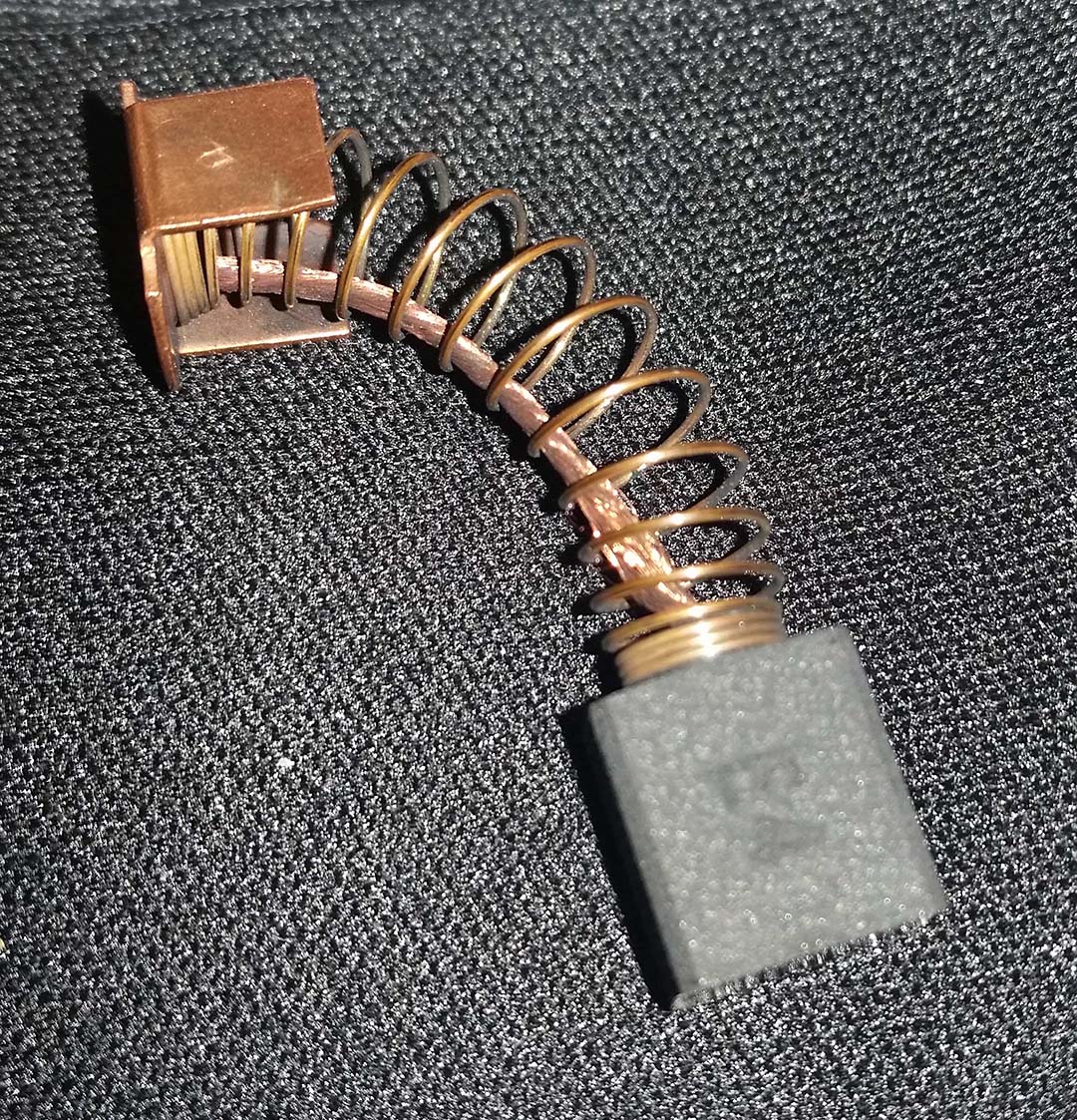

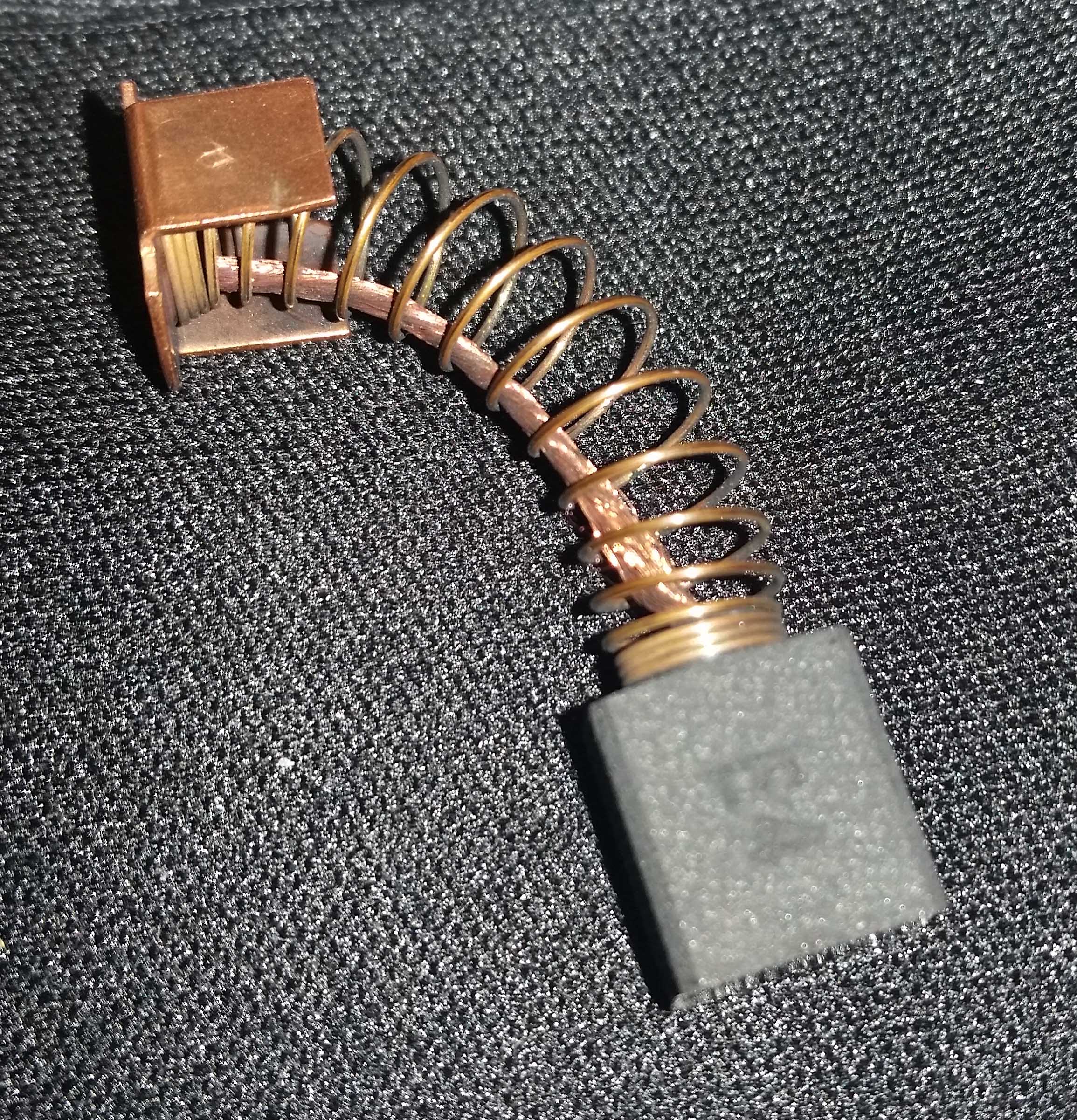

This image is of the Baldor DC Servo (Model #CC22529) Motor Brushes Used.
| | ![Baldor DC Servo Motor Brush Click on Image for High Res Image](Images/Baldor_Servo_DC_Model_CC22529_PIC1_Low.jpg) |
002 | This image is of the Baldor DC Servo (Model #CC22529) Motor Brushes Used. | | ![Baldor DC Servo Motor Brush Click on Image for High Res Image](Images/Baldor_Servo_DC_Model_CC22529_PIC2_Low.jpg) |

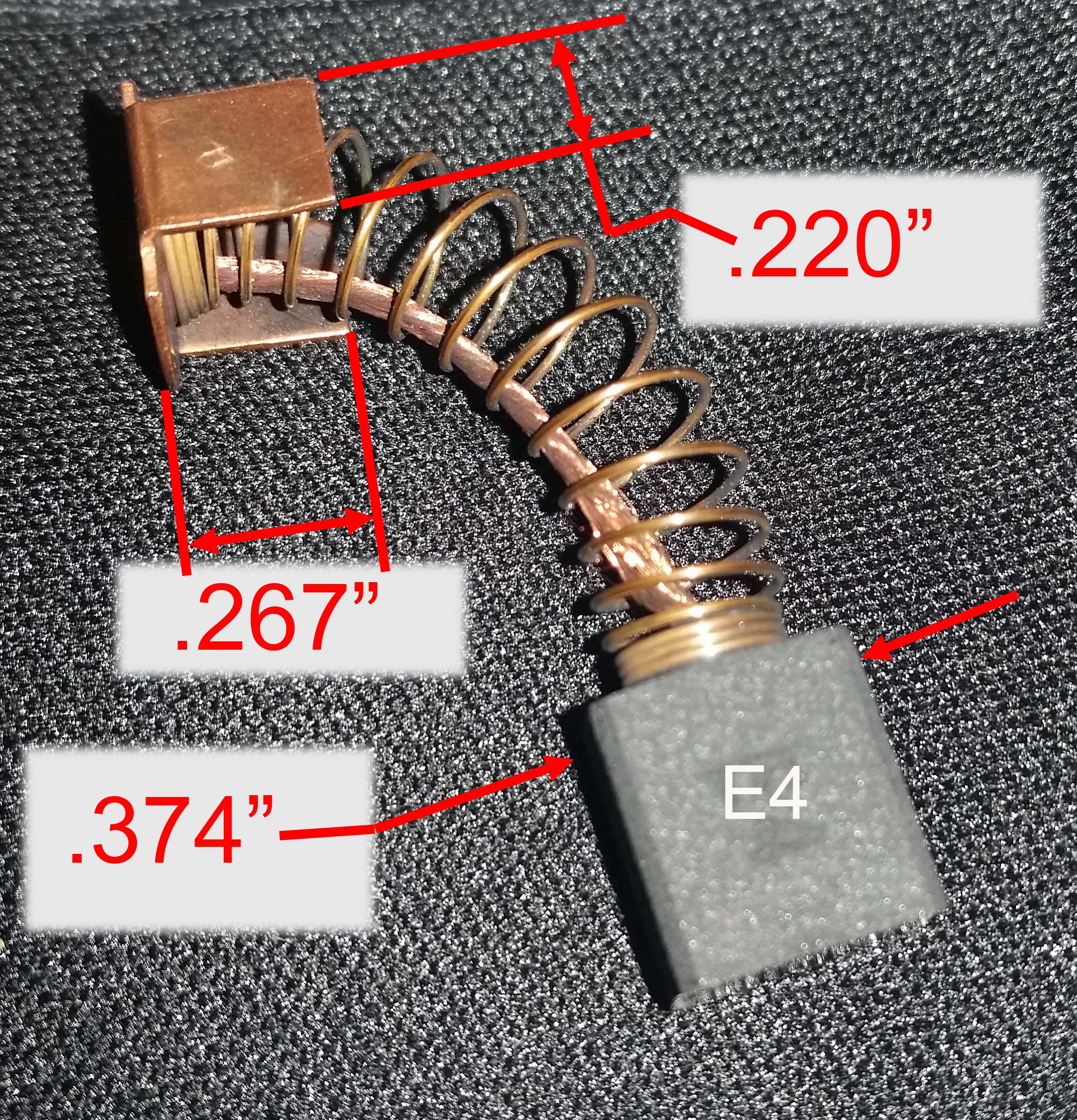

003 | This image is of the Baldor DC Servo (Model #CC22529) Motor Brushes Used. | | ![Baldor DC Servo Motor Brush Click on Image for High Res Image](Images/Baldor_Servo_DC_Model_CC22529_PIC3_Low.jpg) |

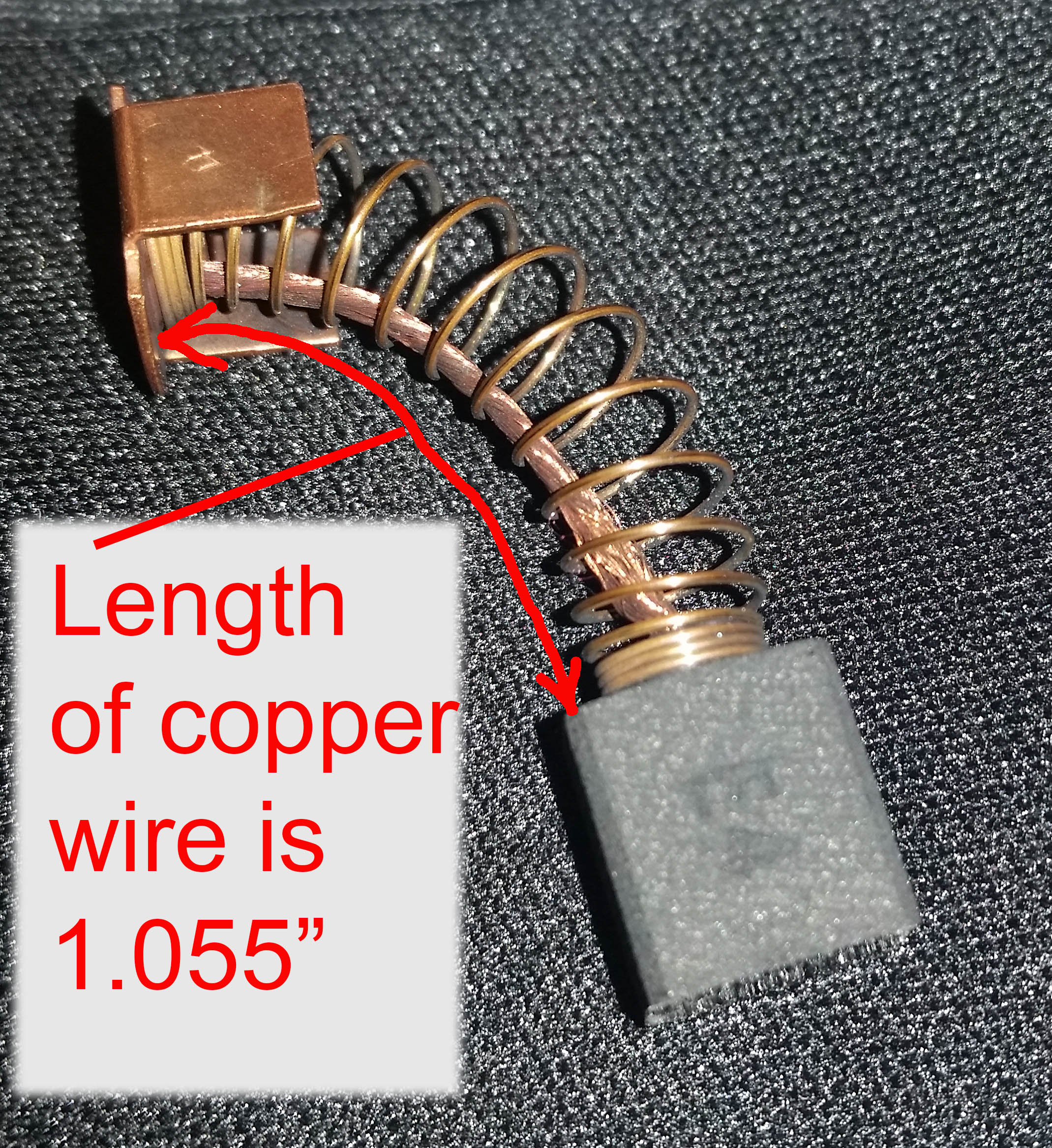

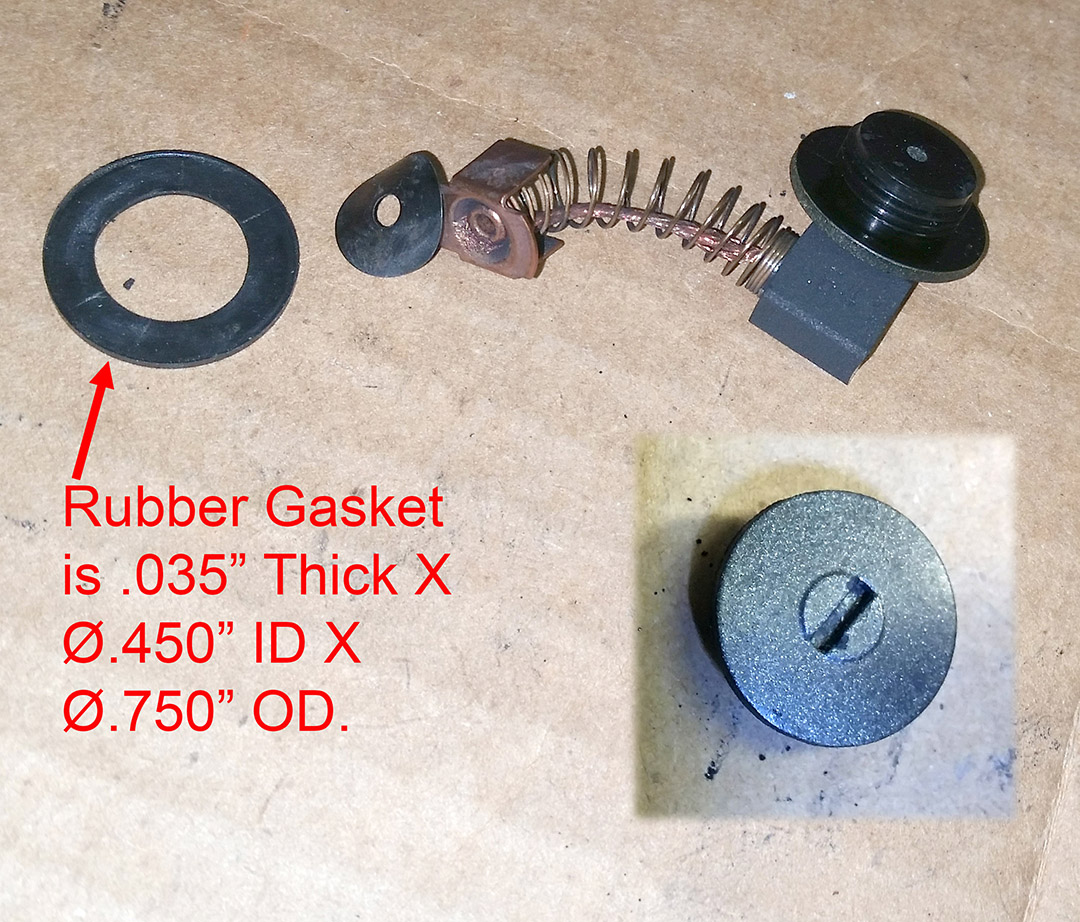

004 | This image is of the Baldor DC Servo (Model #CC22529) Motor Brushes Used. | | ![Baldor DC Servo Motor Brush Click on Image for High Res Image](Images/Baldor_Servo_DC_Model_CC22529_PIC4_Low.jpg) |
005

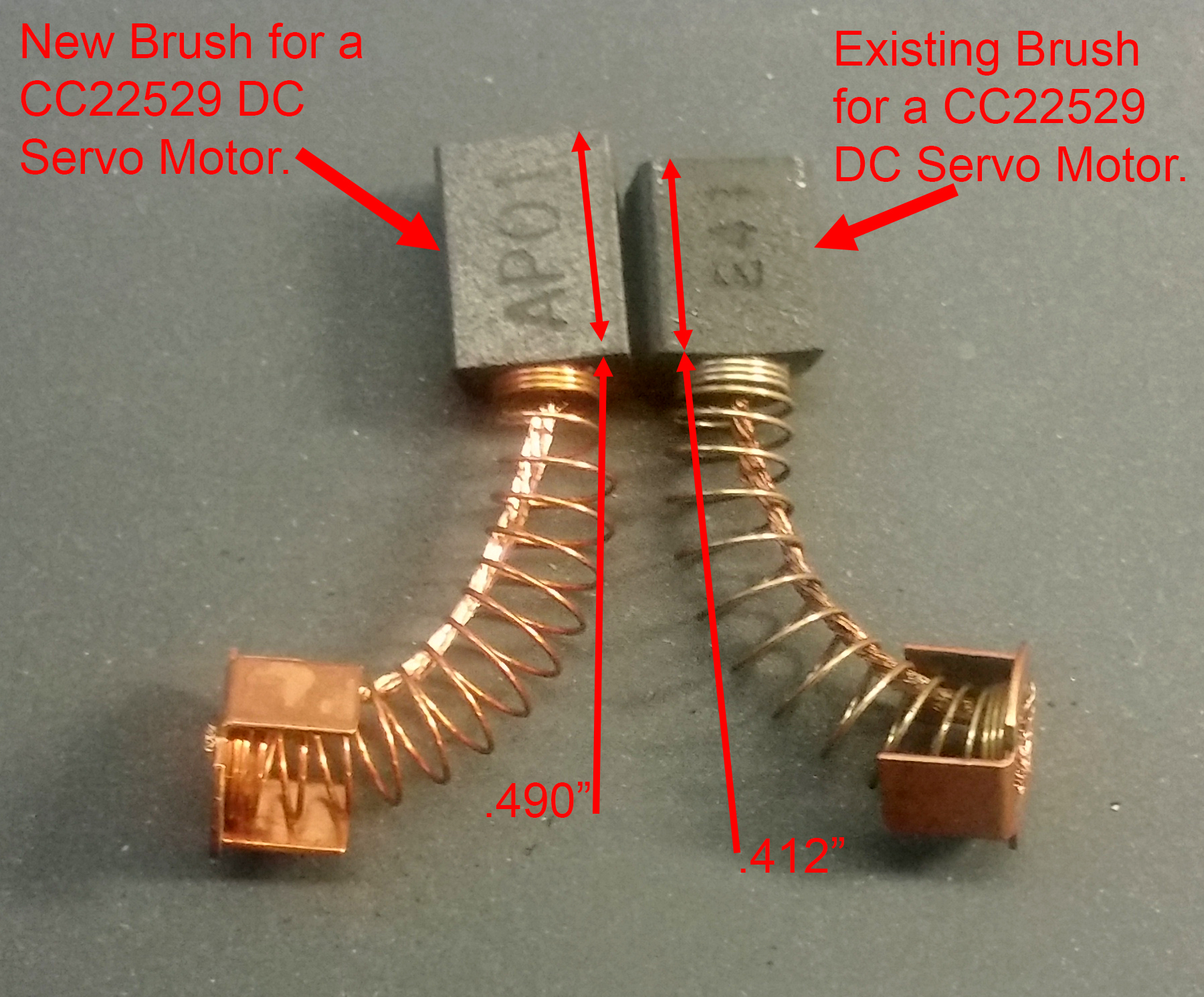

| This
image of the New Baldor DC Servo (Model #CC22529)
Motor Brushes Purchased from ZPS-USA (#CC35168) for $36.00 a set
(two brushes). As you can see the new brush is not that much
longer.
| | ![Click on Image for High Res Image New and Old Brushes](Images/CC22529_New_old_Brush_low_Res.jpg) |

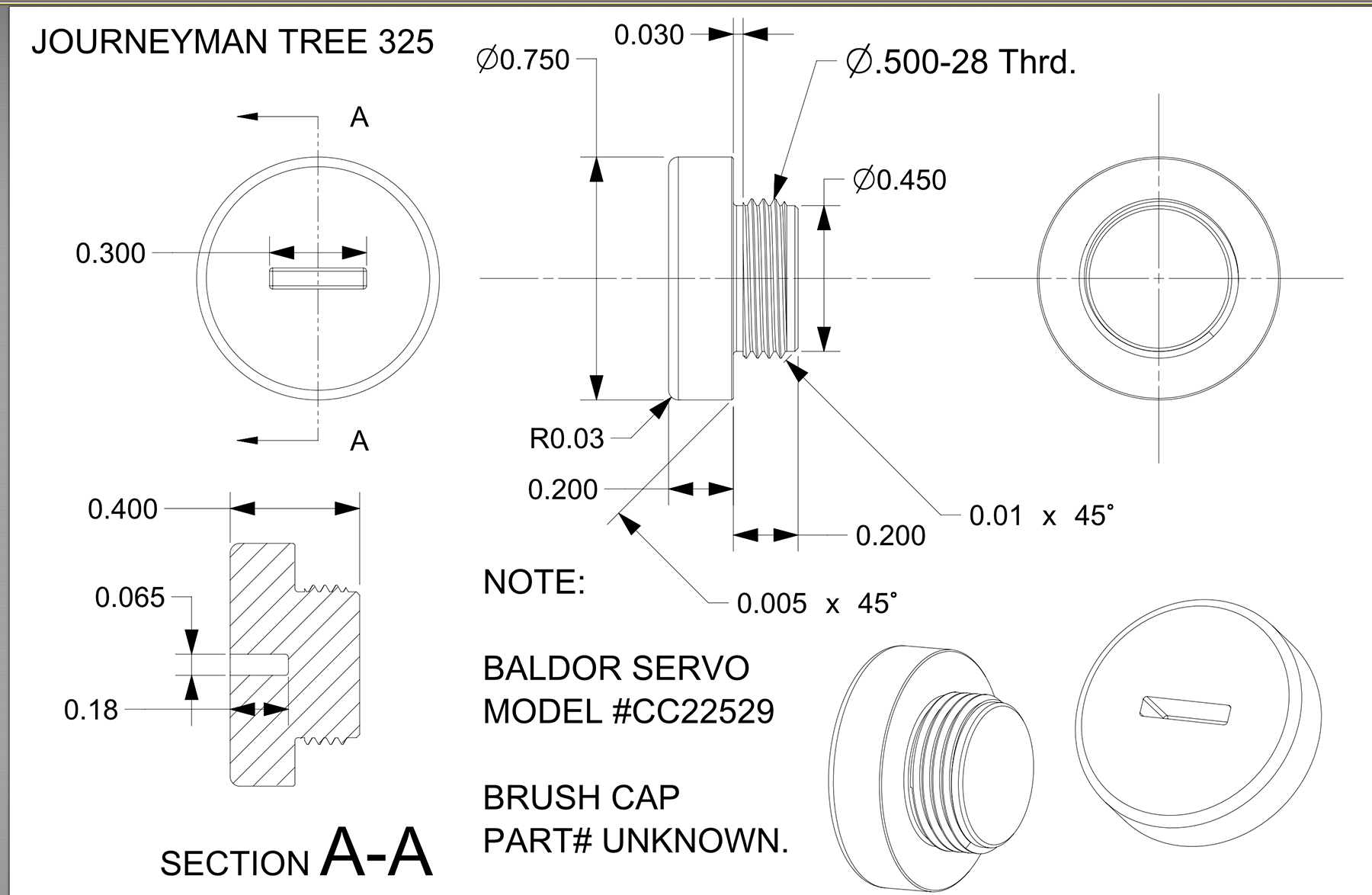

006 | This
image is of the Baldor DC Servo (Model #CC22529) Motor Brushes Cap
Drawing Made from the what was measured. Click on the Image for
the PDF drawing. Don't waste your $$$ buying these from ZPS-USA for
$24.00/set as the quality is not very good and they are not the correct
configuration. Just make you own on a 3D-Printer. | | ![Click on Image for PDF file Baldor DC Servo Motor Brush Cap](Images/CC22529_ServoBrushCap_LowRes.png) |

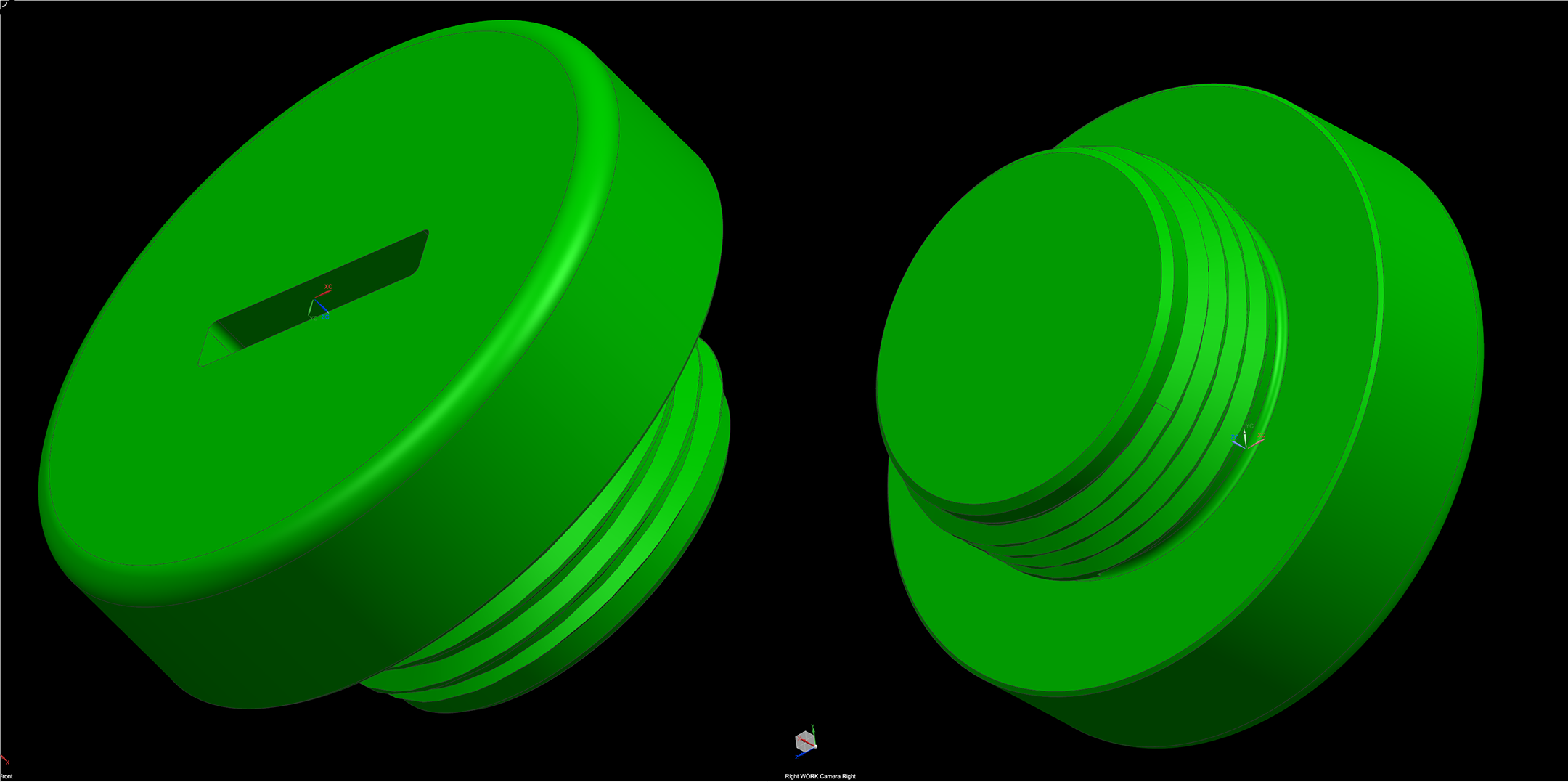

007 | This image is of the
Baldor DC Servo (Model #CC22529) Motor Brushes Cap - 3D Model Made from
the what was measured. Click on the Image for the ZIP file of the Parasolid & STL file of this part. | | ![Baldor DC Servo Motor Brush Cap (3D Model) Click on Image for Zip File of Model](Images/CC22529_ServoBrushCap_3D.png) |

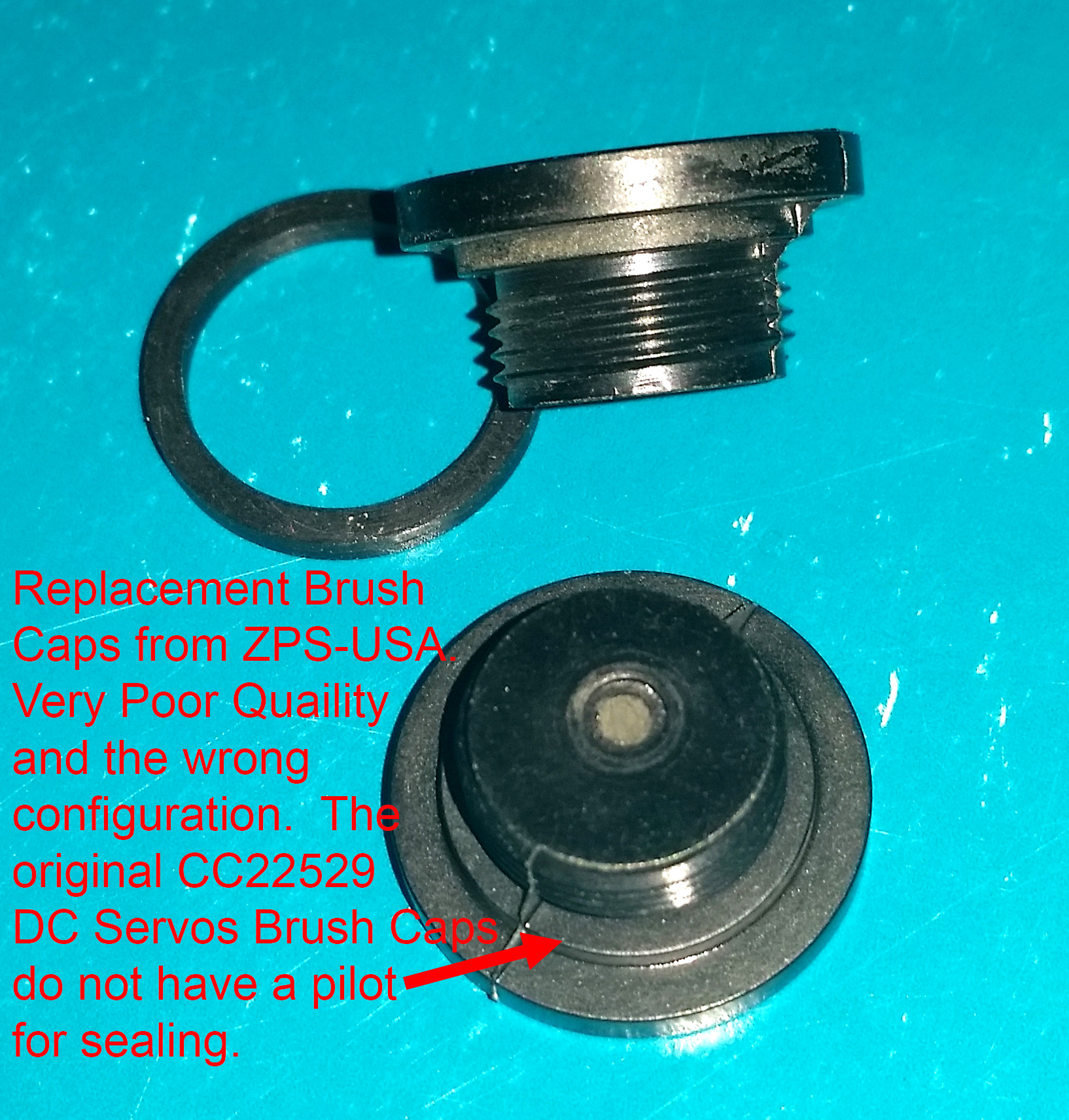

008 | This
image is of the
Baldor DC Servo (Model #CC22529) Motor Brushes Cap purchased
from ZPS-USA (part #CC35168-a). These caps are not correct.
These have flash at the half-way split on each side (poor plastic
die fitting) and it has a pilot for seal a poor fitting rubber gasket.
Don't Waste your $$$ on these caps. Make your own with a 3D
Printer and the files above. | | ![Click on Image for High Res. Image ZPS-USA Incorrect made Brush Caps](Images/ZPS-USA_BrushCap_LowRes.jpg) |
